Dual-Ram Vertical Helical Spline Broaching Machine

Dual-Ram Vertical Helical Spline Broaching Machine Manufacturer

  • Even if the dimensions of the helical splines are different or the straight splines are processed, they can be switched freely
  • By combining with the optional high-speed device, it is possible to realize the flexible production of the automatic production line
  • Suitable for high-efficiency machining of internal helical gears for small reducers and clutches of two-wheelers
  • Compact design saves space
  • Three modes can be selected arbitrarily: left helical, right helical, straight gear
  • The equipment adds a double helix feature, which brings a better gear surface finish

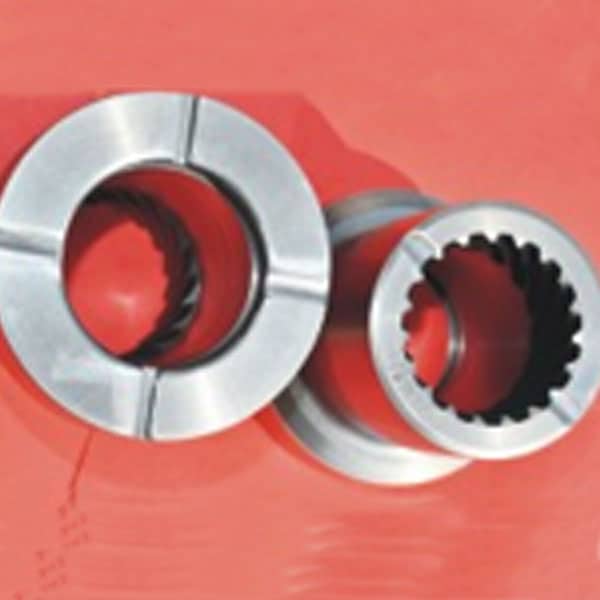

Processing examples

Processing examples
Vertical Helical Spline Broaching Machine
Technology Parameter
Send Inquiry
Download Catalog
CCLC-LX-T5-ZD
Pulling force (KN)50
Max. stroke (mm)1000
Cutting speed (m/min,60Hz)0-10
Return speed (m/min, 60Hz)20
Broach Lifter Stroke(mm)600
Broach Hole Dia(mm)80
Lead ControlDigital Control
Main motor (kw)7.2/11
Machine height (mm)4000
Floor space (mm x mm)1800X3000
Weight (t)5
